Step 1 — Air or Mechanical Actuation:

One side of the sprayer diaphragm is pushed outward by compressed air in air-operated devices or motor-driven eccentric mechanical variants.

Step 2 — Suction Stroke:

The opposing chamber contracts as the diaphragm goes outward on one chamber, creating a vacuum that pulls fluid through the intake ball valve.

Step 3 — Discharge Stroke:

The diaphragm then reverses during the discharge stroke. Fluid is forced out of the pressurized chamber and toward the spray tip or discharge line via the output check valve.

Step 4 — Continuous Cycling:

Two diaphragms run in opposing phases in air operated double diaphragm (AODD) designs, providing a nearly continuous flow with little pulsation—perfect for sensitive fluid transfer and high-pressure spray applications.

1. Air Operated Double Diaphragm Pumps (AODD)

Air operated double diaphragm pumps are the most used type in industrial facilities in the UAE. They use compressed air as their sole power source, making them intrinsically safe for use in explosive atmospheres. Leading brands that UAE vendors carry include the globally recognized Fluimac diaphragm pump line, Triton air operated diaphragm pumps, and Wilden air operated diaphragm pumps and accessories. For applications involving chemical processing, paint spraying, food and beverage transport, and mining slurry, AOD pumps and diaphragm pumps of this kind are the best option.

2. Airless Spray Diaphragm Pumps

The airless diaphragm spray pump atomizes paint at extremely high pressure without adding air to the fluid stream. It was created especially for coating and painting activities. This significantly increases transfer efficiency, gets rid of overspray, and produces a better film finish. This technology has been pioneered by high-end brands like Graco, for whom Fyind lists an authorized UAE presence. The same vendors offer accessories for airless spray pumps, such as pressure controllers, gun fluid hoses, filters, and spray tips.

3. Pneumatic Diaphragm Pumps

Reliable and durable pneumatic diaphragm pumps are the first option for dangerous or damp settings where electrical equipment presents a safety issue because they are powered solely by compressed air. Water treatment operations, chemical factories, and oil and gas facilities in the United Arab Emirates all use high-quality pneumatic diaphragm pumps. A wide choice of PP, PVDF, aluminum, and AISI 316 versions are offered by suppliers like Seltec FZC, the authorized UAE distributor for the Fluimac diaphragm pump line.

4. Membrane Diaphragm Sprayer Pump (Agricultural / Tractor-Mounted)

The membrane diaphragm sprayer pump is essential to agricultural boom sprayers and tractor sprayer rigs for UAE farms and agribusinesses. These pumps are designed to manage insecticides, herbicides, and fertilizers in continuous field settings. For large-area crop protection, an engine-driven high pressure diaphragm sprayer is highly valuable, particularly in the expanding controlled-environment agriculture sector in the United Arab Emirates. One of the well-known brands in this field worldwide, HARDI has a significant presence through agri-equipment dealers in the UAE.

5. High Pressure Diaphragm Pumps for Washing and Surface Prep

For pressure washing surface preparation applications, such as industrial cleaning, blast room maintenance, and infrastructure maintenance, premium plastic diaphragm pumps in Dubai and their stainless-steel counterparts provide the flow rate and operating pressure required for demanding contracts. One particular model that UAE equipment buyers frequently mention spray and pressure-washing rigs is the pump diaphragm AR115BP-C.

6. Diaphragm Paint Sprayer Pumps

The diaphragm paint sprayer is a specialized configuration used in construction, maritime maintenance, industrial finishing, and structural steel painting. Professional painting contractors can purchase brands like Graco's Merkur series and Guan Piin industrial painting spray equipment from UAE distributors. These units are essential for heavy-duty high pressure spray applications since they can spray coatings with up to 55% volume solids and are usually air-assisted or completely airless.

Specification	What It Means for You
Maximum Working Pressure	Determines suitability for high pressure spray applications — look for 150–300 bar for airless systems
Flow Rate (L/min)	Match to your output requirement; commercial airless units typically offer 3–10 L/min
Air Inlet Pressure (bar)	For AODD models, confirm your compressed air supply can meet the minimum requirement
Fluid Compatibility	Check diaphragm material (PTFE, Santoprene, Neoprene) against your chemical spraying needs
Pump Body Material	Aluminium, SS316, plastic (PP/PVDF) — critical for corrosive or food-grade applications
Diaphragm Material	PTFE for harsh chemicals; Santoprene for general-purpose transfer; rubber for abrasive slurries
Port Size	Affects flow velocity and system compatibility
Self-Priming Capability	Essential for installations where the pump sits above the fluid source
IP / ATEX Rating	Mandatory for classified hazardous zones in UAE oil, gas, and petrochemical sites

Century City General Trading LLC — Dubai

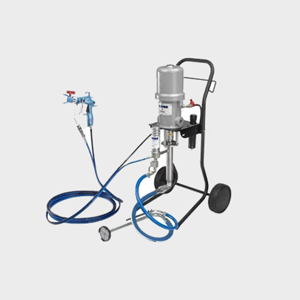

A reputable UAE provider of industrial spray equipment, Century City carries the Air Assisted Airless Spray Pump (7 bar/210 bar), a small, low-volume airless system perfect for finishing homes and businesses. This pump is designed for contractors that need reliable high-pressure performance in a portable style, handling paints with up to 55% volume solids with a flow rate of 3.8 L/min and maximum working pressure of 210 bar.

Jetblast International Equipment LLC — Dubai

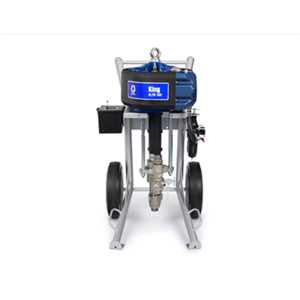

One of the top suppliers and dealers of Graco airless spray systems in the UAE, Jetblast offers the Graco Airless Spray Pump King. They provide Graco spray technology and airless spray pump accessories to construction firms, painting contractors, and industrial finishing operations in Dubai and across the UAE. For consumers looking for diaphragm spray pump manufacturer-grade equipment via an approved local channel, they are a reliable supplier.

GRACO — Dubai (Direct Manufacturer Presence)

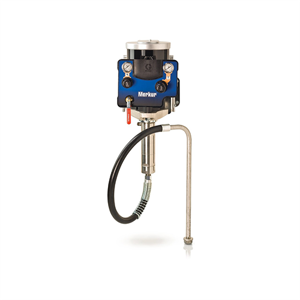

One of the leading producers of fluid handling equipment worldwide, GRACO has a direct presence in Dubai. Their 23:1 Merkur Airless Package delivers 6 L/min fluid flow with XTR5+ gun, cart mount, pump air controls, gun fluid hose, and fluid filter. The Merkur series has been proven to operate better than similar systems in UAE finishing settings, with an ecosystem of airless spray pump accessories ensuring post-purchase support.

Seltec FZC — Sharjah / UAE

Seltec FZC is the authorized distributor of Fluimac diaphragm pumps in the UAE, providing the entire product line in PP, PVDF, aluminum, and AISI 316L stainless steel. Their Fluimac diaphragm pump models include high-viscosity, FDA-certified food-grade, and regular AODD variants, built around an improved air distribution system for longer diaphragm life and less maintenance.

Netrova Engineering Supply LLC — UAE

Netrova Engineering Supply LLC is a specialist engineering provider serving industrial clients in need of pump assemblies and components. They supply the Pump diaphragm AR115BP-C and related parts, making them a vital source for maintenance teams, service engineers, and OEM replacement part procurement throughout the UAE.

Ali Yaqoob Trading — UAE

Ali Yaqoob Trading is a well-known trading company handling diaphragm and AOD pumps in addition to other industrial and fluid-handling equipment. They offer a localized procurement channel for diaphragm pump vendors in the UAE, including parts and accessories, to customers in Dubai, Sharjah, and Abu Dhabi.

Polaroid Spraying Equipment — UAE

Polaroid spraying equipment is cited in the UAE market for expert spray solutions, such as diaphragm spray systems appropriate for commercial and industrial finishing applications. Polaroid-branded or Polaroid-distributed sprayer products are available to buyers in the coatings industry through UAE industrial suppliers.

Diaphragm Pump vs. Centrifugal Pump

Centrifugal pumps are great for large-volume, low-viscosity continuous flow but cannot self-prime and will cavitate with viscous fluids. Diaphragm pumps can handle viscous media, self-prime quickly, and withstand dry operation — making them more adaptable for spray applications.

Diaphragm Pump vs. Piston Pump

Piston pumps can produce extremely high pressures but have intricate seals prone to wear. A membrane diaphragm sprayer pump provides a simpler, seal-less design with less maintenance.

AODD Pump vs. Electric Pump

Air operated double diaphragm pumps are much safer in fuel, chemical, and paint settings because they don't need an electrical connection at the point of usage — a significant compliance advantage in UAE classified areas.

What is the difference between an airless spray pump and an air-assisted airless spray pump?

A fully airless diaphragm spray pump atomizes paint using only hydraulic pressure for thick coats. An air-assisted airless system adds compressed air at the spray tip for finer finish ideal for wood coatings and automotive refinishing.

Can a diaphragm pump handle corrosive chemicals?

Yes. Premium pneumatic diaphragm pumps with PVDF or PTFE linings are specifically designed for chemical spraying applications including acids, alkalis, solvents, and other hostile media.

Which diaphragm pump brand is most widely used in UAE industrial plants?

Graco airless systems and Wilden air-operated diaphragm pumps are among the most widely specified. Fluimac diaphragm pump models have a significant market in chemical and food processing industries. HARDI and Triton are widely used in agricultural and cleaning settings.

Is a diaphragm pump suitable for pressure washing?

Yes. UAE providers offer a large range of specialized high-quality plastic diaphragm pumps in Dubai, including SS models configured for pressure washing, providing steady flow and pressure for surface preparation and industrial cleaning.

Where can I find a verified supplier for diaphragm spray pump components and spares in the UAE?

Netrova Engineering Supply LLC carries pump diaphragm AR115BP-C parts. Seltec FZC stocks Fluimac accessories and spare parts. Jetblast International Equipment LLC supplies Graco airless spray pump accessories — all reachable directly via Fyind.

What is the typical delivery lead time for diaphragm spray pumps in the UAE?

Locally stocked models from suppliers in Sharjah and Dubai typically arrive within 1–5 business days. Imported or custom-designed units may take 2–6 weeks. Check lead times using Fyind's RFQ tool before purchasing.
